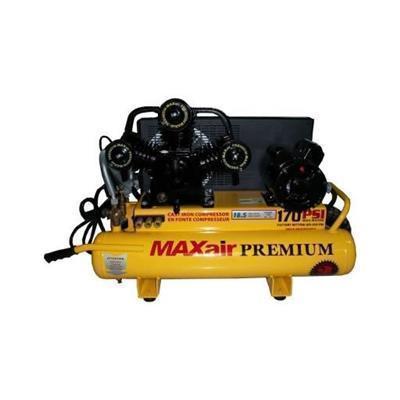

MaxAir 5 HP 8 Gallon Air Compressor

Free Shipping Does Not Include Any Lift Gate Fees or Residential Fees

this item ships truckline

Features

• CFM / PSI: 18.5 CFM @ 100 PSI
• HorsePower: 5.0
• Max Rated PSI: 170
• Air Tank Capacity (Gal): 8
• Single Stage
• Electric Motor: 208/220V
• 3 Piston Cast Iron Pump
• Steel Tank
• Motor RPM: 3600
• Bare Comp RPM: 1230
• Amp Draw: 23/21
• Pressure Switch: 95-125
• Liquid Filled Pressure Gauge
• Auto Drop Premium Air Filter
• Oil Sight Gauge
• 2 Year Limited Warranty
• tmi130500

DIM:  48" x 18" x 18"

WEIGHT:  190 LBS

Item	Description
1	Compressor w/ Flywheel	PT03AHP
2	Discharge Tube	TU-23-AL
3	Pressure Gauge	PGLF200-2.5BM1/4
	Pressure Gauge (regulator)	PT0160
4	Wiring Harness	12/3-42-TT15
5	Air Receiver (tank)	10TT41X5-Y
6	Drain Cock	BV1/4MXF
7	V-Belt	4L530
8	Belt Guard	BGC
9	Electric Motor	EM05.0-36-10
10	Regulator	R202-1/4
11	Unloader	NDC29-M
12	Pressure Switch	21UCBDB-170
13	Pulley - Motor	MA38X7/8
14	Unloader Tube	TU1/4BLK
	*Fittings	68-4A
15	Safety Valve	PSV1/4-200
16	Handle Grip	TT-GRIP
17	Vibration Dampner	TT-FOOT
18	Pneumatic Wheel	TT-WHEEL-SQ-FF
19	Axle	WA1001
20	Coupler	CPL-TRI
21	Power Cord	12/3-72-TTP5
	Eagle Compressor Oil	EAOIL10

Item	Description	Part Number	Quantity
1	Intake Filter Assembly	51111-5600	3
2	Cylinder Head	52122-0101	3
3	Lift Limiter - Discharge Valve Reed	51121-3102	6
4	Valve Plate	52122-2101	3
5	Valve Plate to Head Gasket	52122-2105	3
6	Discharge Valve Reed	51121-2103	6
7	Intake Valve Reed	52122-2103	3
8	Valve Plate to Cylinder Gasket	52122-2104	3
9	Piston	51122-5101	3
10	Piston Pin	51122-5112	3
11	Piston Pin Snap Ring	51122-5107
12	Connecting Rod c/w Dipper	51122-5120	3
13	Connecting Rod without Dipper	52122-5120
14	Cylinder	52122-4101	3
15	Oil Filter Cap	51111-4719	1
16	Cylinder to Crankcase Gasket	51122-4103	3
17	Oil Sight Glass c/w Gasket	51111-4770	1
18	Crankcase	51132-4701	1
19	Crankshaft	51132-4601	1
20	Front Bearing	83501-6205	1
21	Rear Bearing	83501-6205	1
22	Crankcase to Rear Bearing Housing Gasket	51122-4704	1
23	Rear Bearing Housing	51122-4703	1
24	Oil Seal	51122-4708	1
25	Crankcase Breather	51111-4761	1
26	Flywheel	51132-6601	1
27	Front Bearing Housing	51122-4706	1
28	Crankcase to Front Bearing Housing Gasket	51122-4707	1
29	Connecting (Interstage) Tubing	51132-7710	2
30	Metal Triangle For Valve Plate Assembly (Not Shown)	51121-3101	2
	1/4" Street Elbow (Oil Drain)	STREL1/4	1
	Interstage "Y" Fitting	51121-7702	2
	Interstage "Elbow" Fitting	51112-7701	1
	Eagle Oil (650ML or 22OZ)	EAOIL10	1



Item	Description	Part Number	Quantity
A	Intake Filter Element Kit Includes:	51121-5614C	1
	- 3 Intake Filter Elements
B	Valve Repair Kit Includes:	101000-165	3
	Valve Seat to Head Gasket (Item 5)
	2x Outlet Valve Plates (Item 6)
	Intake Valve Plate (Item 7)
	6x Valve Plate Screws
	Valve Seat to Cylinder Gasket (Item 8)
	Metal Triangle for Valve Plate Assy (Item 30)
C	Ring Repair Kit Includes:	101000-265	2
	Valve Seat to Head Gasket (Item 5)
	Valve Seat to Cylinder Gasket (Item 8)
	2x Compression Rings
	1x Oil Control Ring
	Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not Shown)	51121-2100	3
E	Flywheel Fastener Kit	51132-6602	1
E	Head Unloader Kit Includes:
	Unloader	52122-0120	3
	Unloading Elbow	69926-050101	1
	Unloading Tee	69927-050101	1
	Unloading Tube	TU-1/4-CU	5ft
	Cylinder Head	51121-0101U	3
