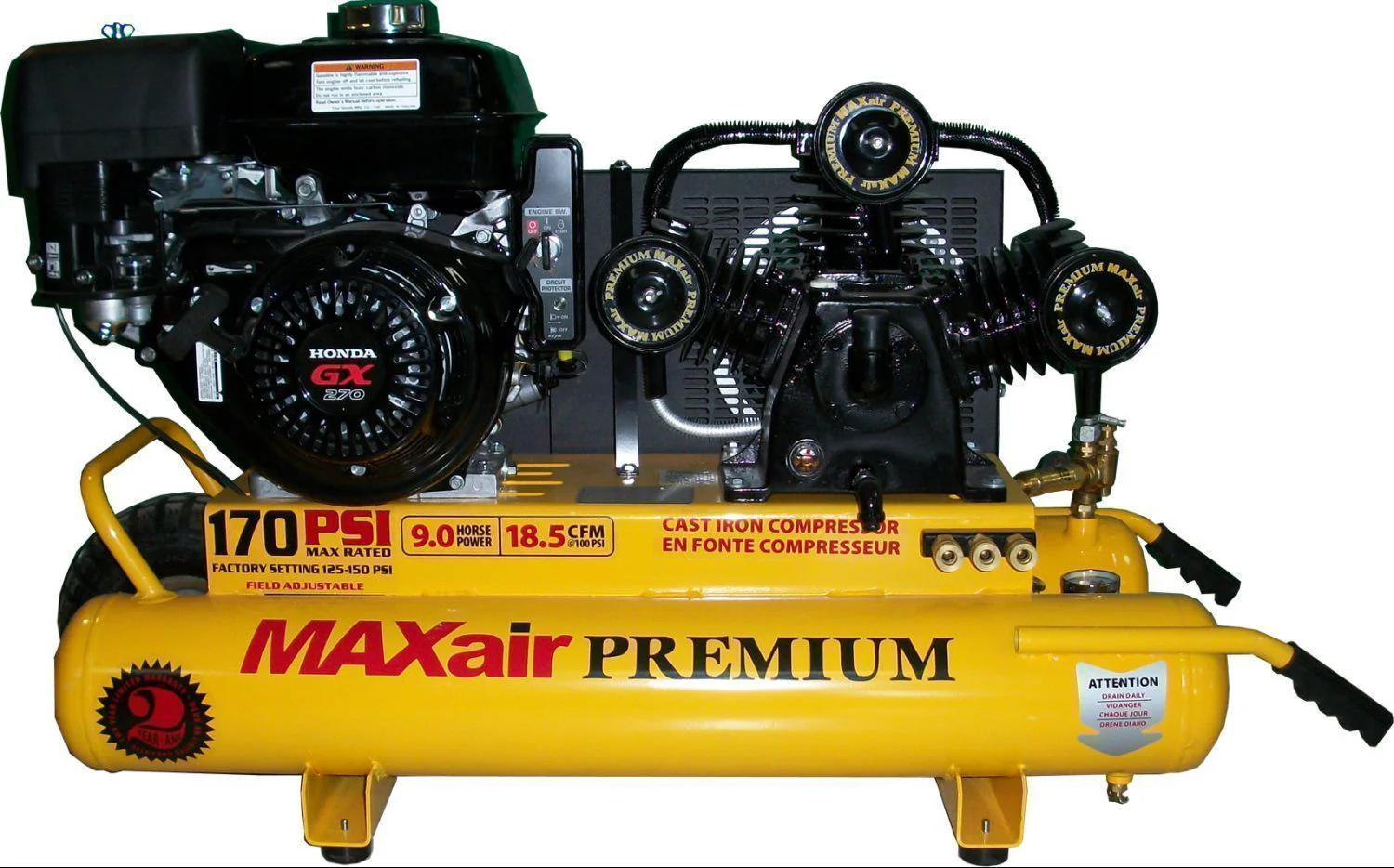

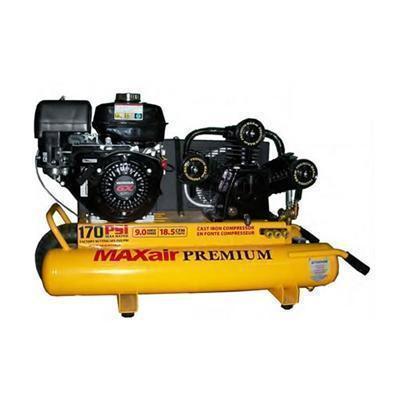

MaxAir 9HP Honda Engine Electric Start 10 Gallon Air Compressor

•  Shipping  Fees Does Not Include Lift Gate Fees or Residential Fees
  (this item ships truckline)



• Max-Air 9HP Electric Start Honda Engine  GX270

• 18.5 CFM @ 100 PSI
• Maximum rated PSI 170
• Receiver Capacity 10 Gallon
• Engine Is Great For Smooth, Quiet Operation And Maximum Reliability
• Rugged Compressor With Cast Iron Cylinders
• "V"Design Minimizes Vibration, Improves Coolin And Extends Compressor Life
• Individual And Removable Cylinders For Smoother And Cooler Operation
• 10 Gallon Capacity Twin Tanks The Largest In The Industry
• Steel Rim Tire For Easy Handling And Maneuverability
• Convenient Oil Drain On front Of Unit
• Easy View Oil Sigh Gauge
• Premium Air filters With Äuto Drop"Feature
• Liquid Filled Pressure Gauges
• High Efficiency Reed Valves For Maximum Performance
• Efficient Heat Removal From Pulley-Fan For Cooler Running And Longer Life
• Sturdy Metal Belt Gaurd
• Engine Slow Down Control Reduces Operating Costs And Unecessary Wear
• Outlet Control Regulator With Multiple Quick Couplers
• 2 Year Factory Warranty
• TMI205000

Dimensions L-W-H: 50-18-28

Weight 215 Lbs

SHIPPING DIMENSIONS- 266# 40X48X34



Item	Description	Product Code
1	Compressor w/ Flywheel	PT03AHP-TS
2	Pressure Gauge	PGLF200-2.5BM1/4
3	Discharge Tube (2.5ft) ASSY	TU-23-AL
4	Air Receiver (tank)	10TT41X5-Y
5	Drain Cock -Assembly	BV1/2MF
6	V-Belt	A56
7	Belt Guard	TT-GUARD
8	Engine	GX-270UTQAE2-B
9	Unloader	LMV100F-125-150
10	Pulley - Engine	MA38X1
11	Safety Valve	PSV1/4-200
12	Engine Control w/ Cable	TCMA-H-8090 LB - Newer Model TCLP-48-3104- Older Model
13	Handle Grip	TT-GRIP
14	Vibration Dampner	TT-FOOT
15	Pneumatic Wheel	TT-WHEEL-SQ-FF
16	Coupler	CPL-TRI
17	Hose Assembly - Regulator	TT-HOSE-B
18	Pressure Gauge (regulator)	PT0160
	Eagle Compressor Oil	EAOIL10
	Regulator	R202-1/4
	Axle	WA1001
