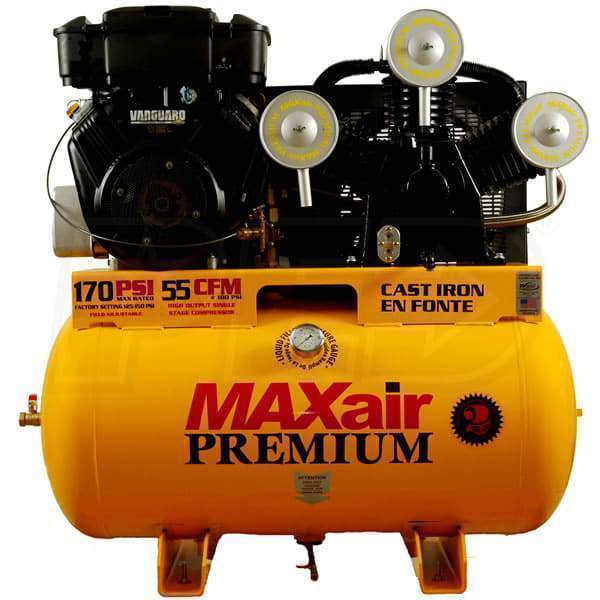

MaxAir 18HP 55 Gallon Air Compressor

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

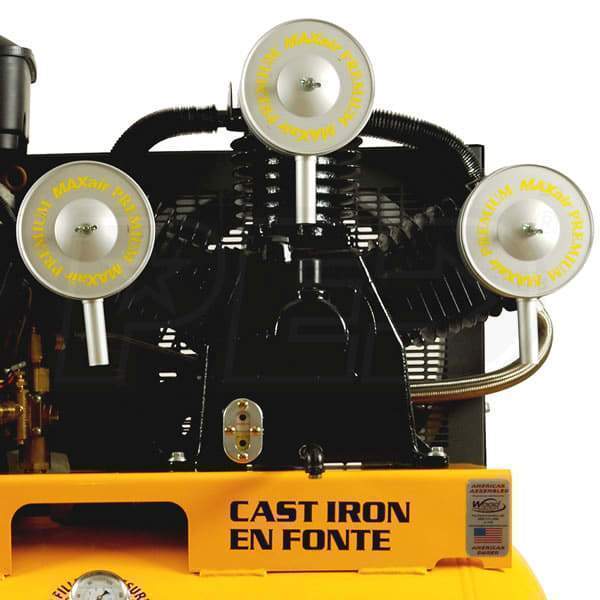

• "V" style design minimizes vibration. improves cooling, and extends compressor life
• Individual and removable cylinders for smoother and cooler operation and easy maintenance
• 18HP twin cylinder electric start vanguard motor
• Metal air filters with "Auto Drop" feature
• 55 gallon ASME registered tank 200 PSI rating
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance
• Efficient heat removal from fly wheel for cooler running and longer life
• Sturdy metal belt guard
• Heavy duty 3/4" ball valve included
• Engine idle control feature that reduces operating cost and unnecessary wear
• 2 year limited warranty
• Liquid filled pressure gauge
• Innovative single stage technology that produces 170 PSI
• Convenient extended oil drain. Conveniently located ball valve on front of tank for draining moisture from tank
• Industry leading CFM production
• 18HP
• Maximum rated PSI 170
• Receiver Capacity 55 Gal
• Engine- B&S Vanguard
• Dimensions 49x25x54
• Weight 510 lbs
• TMI430000

Item	Description	Product Code
1	Compressor w/ Flywheel	PT10AHP-TS PUMP ASSY
2	Discharge Tube (2.5ft) ASSY	TU-1-20.75/90/45
3	Pressure Gauge	PGLF200-2.5BM1/4
4	Outlet Valve	BV3/4MF
5	Air Receiver (tank)	55H24X44TRK-Y
6	Drain Cock -Assembly	OSB WO DC ASSEMBLY
7	V-Belt	B82
8	Belt Guard	BG30GAL
9	Engine	BS-3564471213F8
10	Unloader	NLG-6-120-150
11	Pulley - Engine	2B4.2SH
12	Safety Valve	PSV1/4-200
13	Engine Control w/ Cable	TCLP-36-0817
	Eagle Compressor Oil	EAOIL10
