$1,395.00

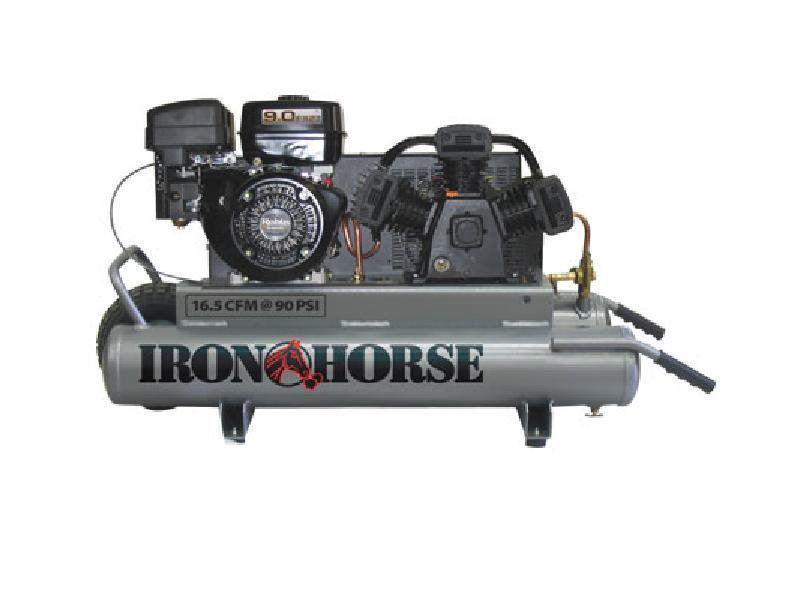

Iron Horse Air Compressor 10 Gallon 8 Horsepower Briggs And Stratton Engine—
$1,395.00
The Story
-
A lift gate fee and a residential fee will need to be added in addition to shipping charges
-
This Item Has To Ship Truckline
-
- Easy to start, works hard, lasts a long time
- Delivers a quiet operation and maximum reliability
- OHV provides more power, less fuel-use & lower emissions
- 10-Gallon Capacity Twin Wheelbarrow Style Tanks
- Largest in the industry; powers tools up to 16.5 CFM
- Stable low profile is easy to move & transport
- Rugged Solid Cast Iron Pump
- Easy viewing oil sight glass
- Sturdy and reliable air pressure wherever you need it
- Good compressor strength and ability to withstand heavy workloads
- 3 Individual & Removable Cylinders
- Allows for easy maintenance
- Delivers smoother & cooler operation
- High Efficiency Reed Valves
- Offer maximum and reliable performance
- Efficient heat removal from flywheel for cooler running and longer life
- Engine Slow-Down Control
-
Engine HP 8
-
Auto Idle Yes
-
Engine Brand Briggs & Stratton
-
Starting System Recoil Start
-
Pump CFM 16.5
-
CFM Rated @ 90 PSI
-
Pump Material Solid Cast Iron
-
Max PSI 150 PSI
-
Oil Sight Glass Yes
-
Pump Type Single-Stage
-
After Cooler No
-
Pump Drive Belt Drive
-
Oil Type Oil Lubricated
-
Oil System Splash Lubricated
-
Pump Low Oil Shut-off No
-
Tank Tank Size 10 Gallons
-
Tank Included Yes
-
Tank Outlet 1/4 Inch
-
Electronic Drain Valve No
-
Tank Orientation Horizontal
-
Overview Weight 189 Pounds
-
Consumer Warranty 1 Year
-
Commercial Warranty 1 Year
-
Product Length 46 Inches
-
Product Width 17 Inches
-
Product Height 27 Inches
-
Power Type Control and regulates the engine idle speed
- Reduces operating costs & unnecessary wear
- Built For Professional Use
- Sturdy belt guard protects the belt and the user
- Easy view oil sight gauge
- Pneumatic tire for easy handling & maneuverability
- TMI105000

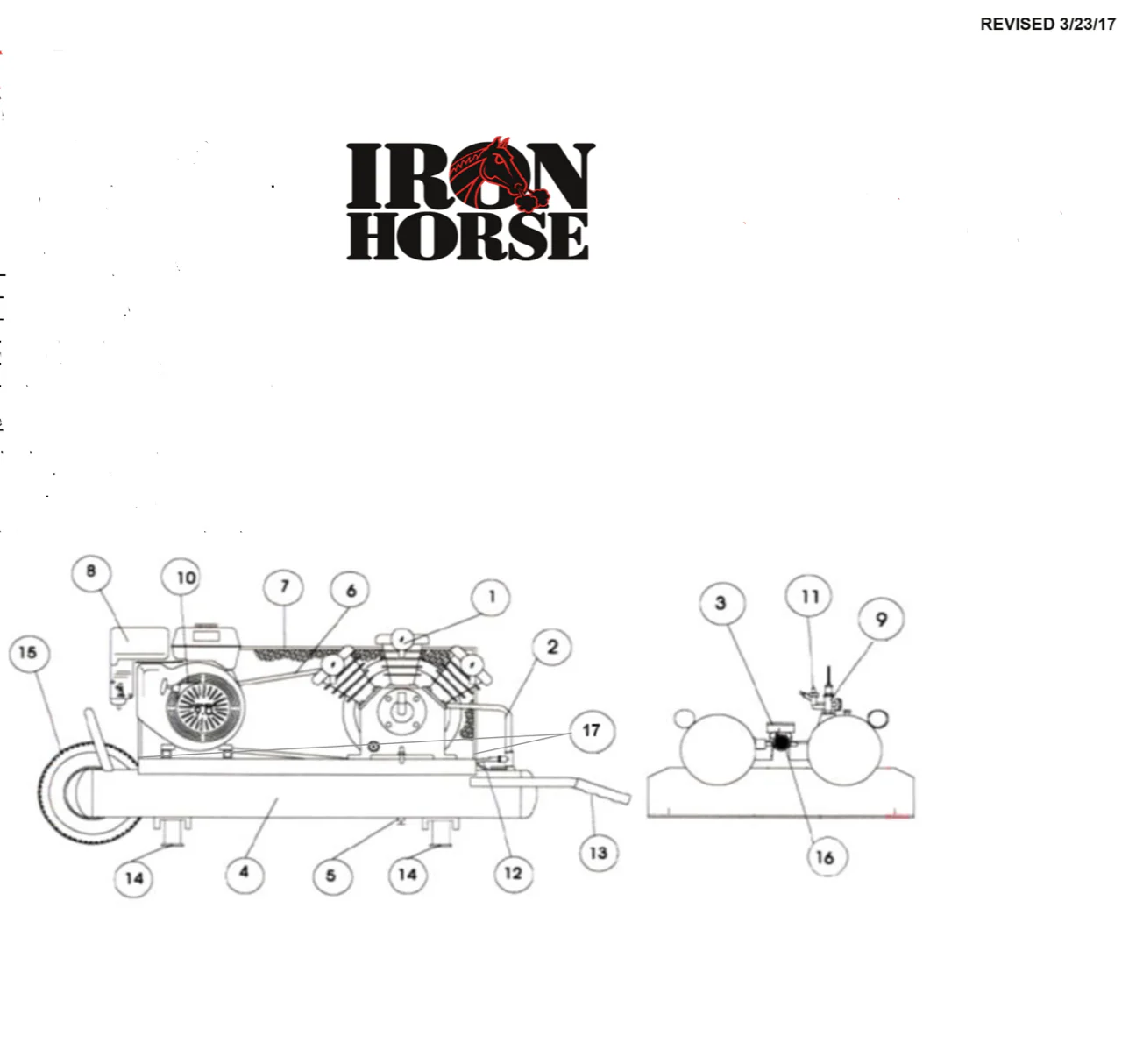

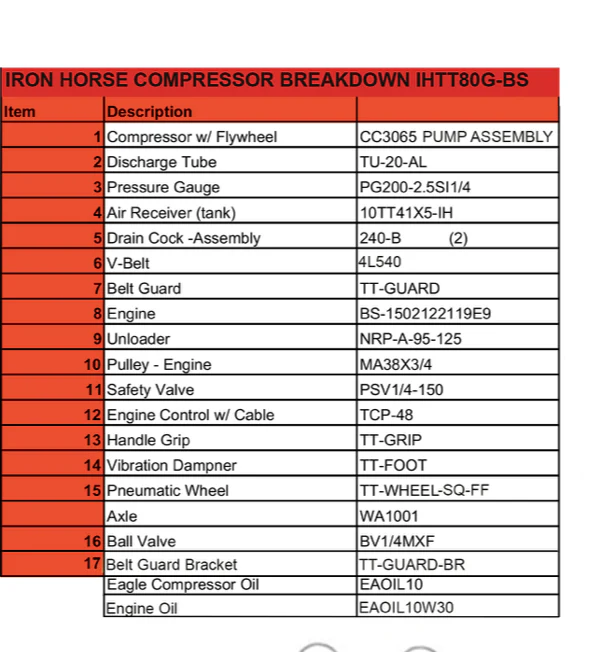

| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC3065 |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Pressure Gauge | PG200-2.5SI1/4 |
| 4 | Air Receiver (tank) | 10TT41X5-IH |
| 5 | Drain Cock -Assembly | 240-B (2) |
| 6 | V-Belt | 4L540 |
| 7 | Belt Guard | TT-GUARD |
| 8 | Engine | BS-1502122119E9 |
| 9 | Unloader | NRP-A-95-125 |
| 10 | Pulley - Engine | MA38X3/4 |
| 11 | Safety Valve | PSV1/4-150 |
| 12 | Engine Control w/ Cable | TCP-48 |
| 13 | Handle Grip | TT-GRIP |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Pneumatic Wheel | TT-WHEEL-SQ-FF |
| Axle | WA1001 | |
| 16 | Ball Valve | BV1/4MXF |
| Eagle Compressor Oil | EAOIL10 |

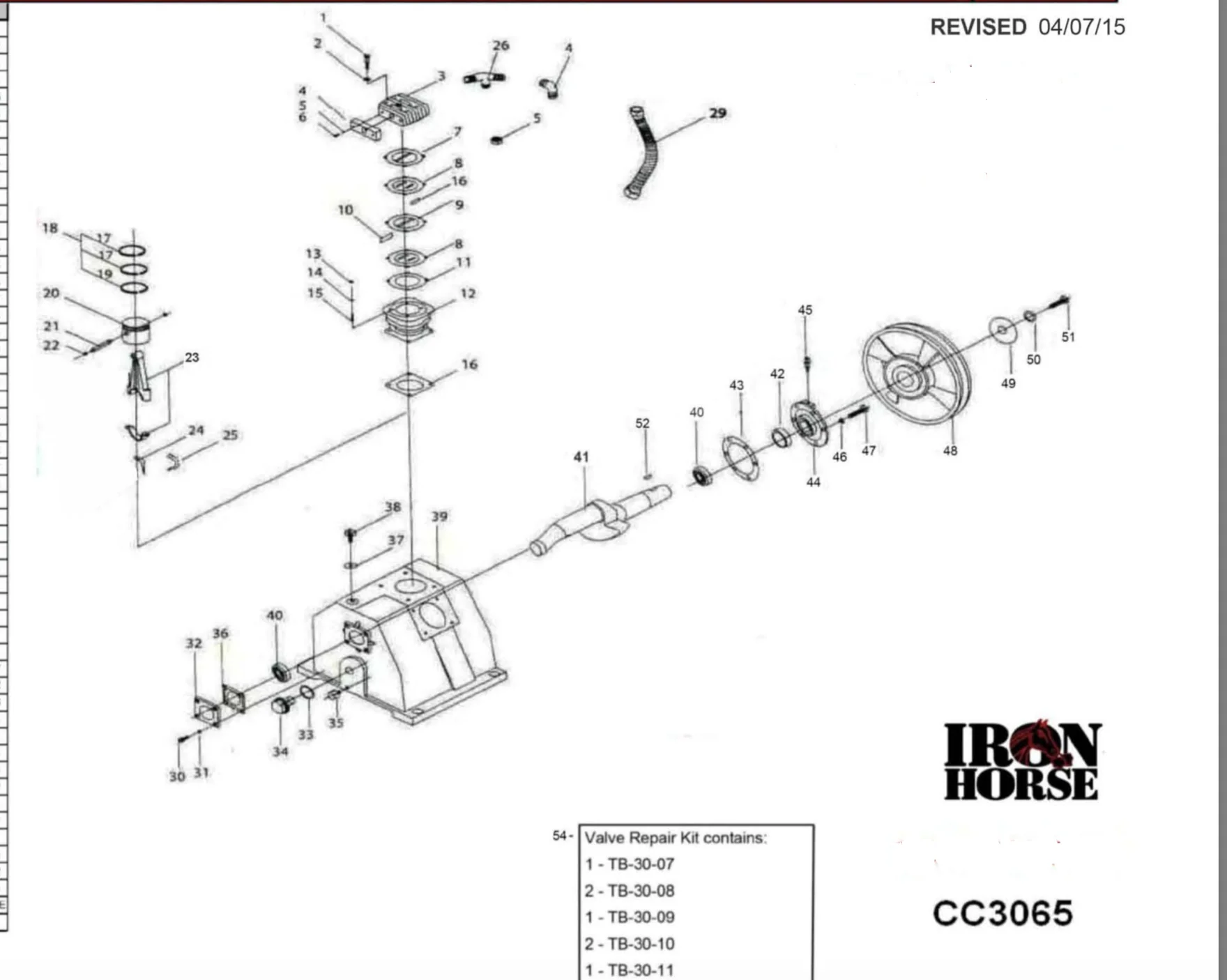

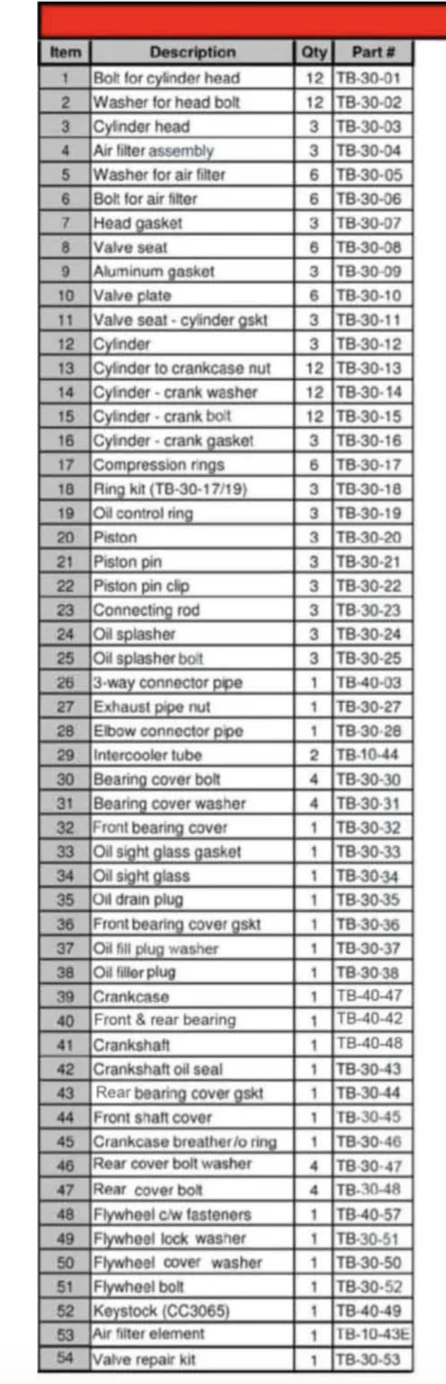

| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 12 |
TB-30-01 |
| 2 | Washer for Head Bolt | 12 | TB-30-02 |
| 3 | Cylinder Head | 3 | TB-30-03 |
| 4 | Air Filter | 3 | TB-30-04 |
| 5 | Washer for Air Filter | 6 | TB-30-05 |
| 6 | Bolt for Air Filter | 6 | TB-30-06 |
| 7 | Head Gasket | 3 | TB-30-07 |
| 8 | Valve Seat | 6 | TB-30-08 |
| 9 | Aluminum Gasket | 3 | TB-30-09 |
| 10 | Valve Plate Reed | 6 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 3 | TB-30-11 |
| 12 | Cylinder | 3 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 12 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 12 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 12 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 3 | TB-30-16 |
| 17 | Compression Rings | 6 | TB-30-17 |
| 18 | Ring Kit | 3 | TB-30-18 |
| 19 | Oil Control Ring | 3 | TB-30-19 |
| 20 | Piston | 3 | TB-30-20 |
| 21 | Piston Pin | 3 | TB-30-21 |
| 22 | Piston Pin Clip | 3 | TB-30-22 |
| 23 | Connecting Rod | 3 | TB-30-23 |
| 24 | Oil Splasher | 3 | TB-30-24 |
| 25 | Oil Splasher Bolt | 3 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 1 | TB-40-03 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 2 | TB-10-44 |
| 30 | Bearing Cover Bolt | 4 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 1 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-40-47 |
| 40 | Front & Rear Bearing | 1 | TB-40-42 |
| 41 | Crankshaft | 1 | TB-40-48 |
| 42 | Crankshaft Oil Seal |
1 | TB-30-43 |
| 43 | Rear Bearing Cover Gasket |
1 |
TB-30-44 |
| 44 | Front Shaft Cover |
1 |
TB-30-45 |
| 45 | Crankcase Breather/ O Ring |
1 |
TB-30-46 |
| 46 | Rear Cover Bolt Washer |
4 |
TB-30-47 |
| 47 | Rear Cover Bolt | 4 |
TB-30-48 |
| 48 | Flywheel C/W Fasteners |
1 | TB-40-57 |
| 49 | Flywheel Lock Washer | 1 |
TB-30-51 |
| 50 | Flywheel Cover Washer | 1 |
TB-30-50 |
| 51 | Flywheel Bolt | 1 |
TB-30-52 |
| 52 | Keystock |
1 |
TB-40-49 |
| 53 | Air Filter Element | 1 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
