Iron Horse 5 Horse Power 60 Single Stage Gallon Air Compressor 208 230 Volt 1 Phase

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE AND RESIDENTIAL FEE MAY BE ADDED IN ADDITION TO SHIPPING CHARGES!

Features

• CFM / PSI: 16.5 CFM @ 90 PSI
• HorsePower: 5
• Max Rated PSI: 150
• Air Tank Capacity (Gal): 60
• Electric Motor: 208/230 Volt AC
• Amp Draw 22.5
• 1-Phase:
• Pump Material Solid Cast Iron
• Pump Type Single Stage
• Pump Drive Belt Drive
• Oil Lube
• No Magnetic Started Required
• Enclosed Belt Guard
• Heavy Duty Pressure Switch Easy On/Off Control
• Thermally Protected 208/230Volt Motor Versatile Single Phase Power Fits Many Applications
• 60 Gallon ASME Registered Tank RAted To 150 PSI
• High Efficency Reed Valves Provide Maximum Performance
• Sturdy Belt Gaurd
• Oil Sight Gauge
• 5 HP Electric Motor Run A Wide Variety Of Tools Reaches 7 HP Peak At Startup
• Rugged # Cylinder CAst Iron Compressor Extremely Quiet And Durable
• Individual And Removable Cylinders Provides Smoother And Cooler Operation For Longer Life
• 1 Year Limited Warranty
• TMI108500

DIM:  27" x 20" x 66"

WEIGHT:  280 LBS

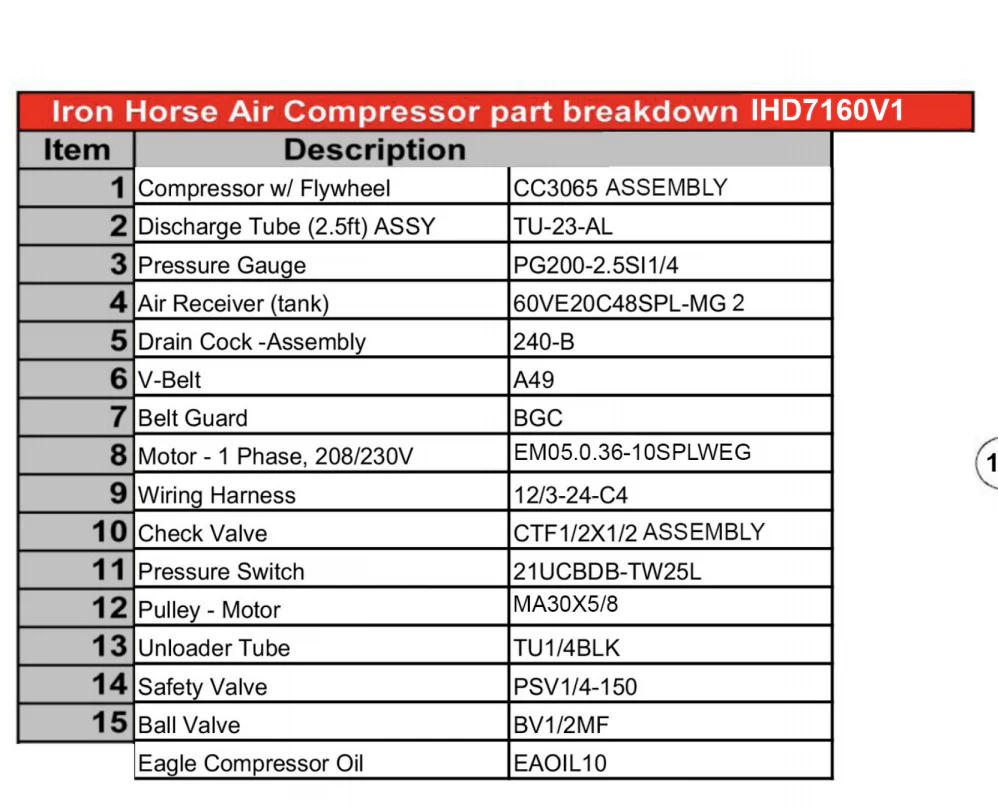

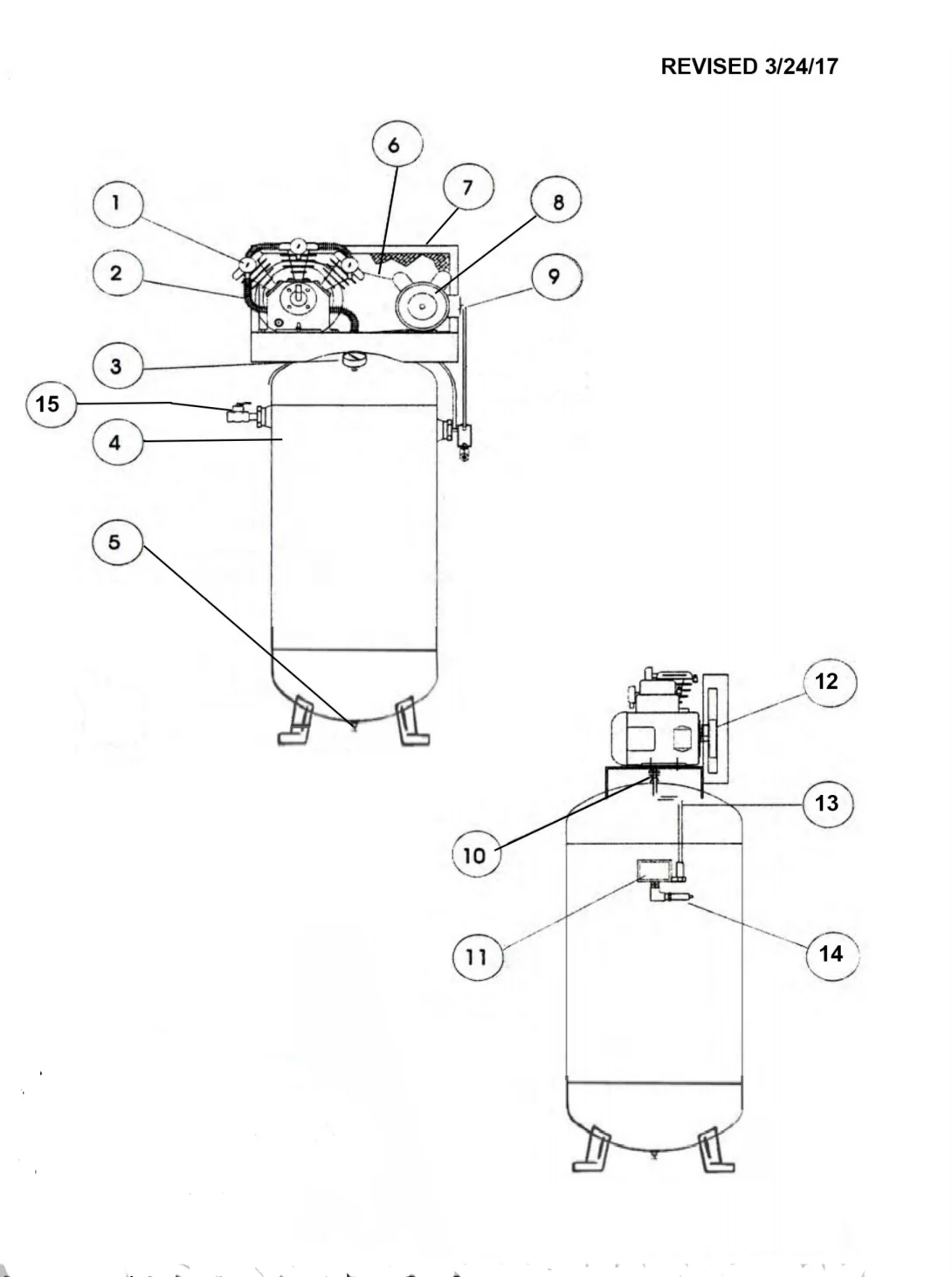

Item	Description	Product Code
1	Compressor w/ Flywheel	CC3065
2	Discharge Tube (2.5ft) ASSY	TU-23-AL
3	Pressure Gauge	PG200-2.5SI1/4
4	Air Receiver (tank)	60VE20C48SPL-MG
5	Drain Cock -Assembly	240-B
6	V-Belt	A49
7	Belt Guard	BGC
8	Motor - 1 Phase, 208/230V	EM05.0-36-10
9	Wiring Harness	12/3-24-C4
10	Check Valve	CTF1/2X1/2
11	Pressure Switch	21UCBDB-TW25L
12	Pulley - Motor	MA38X7/8
13	Unloader Tube	TU1/4BLK
	**Fittings Required for TU-1/4BLK	68-4A
14	Safety Valve	PSV1/4-150
15	Ball Valve	BV1/2MF
	Eagle Compressor Oil	EAOIL10

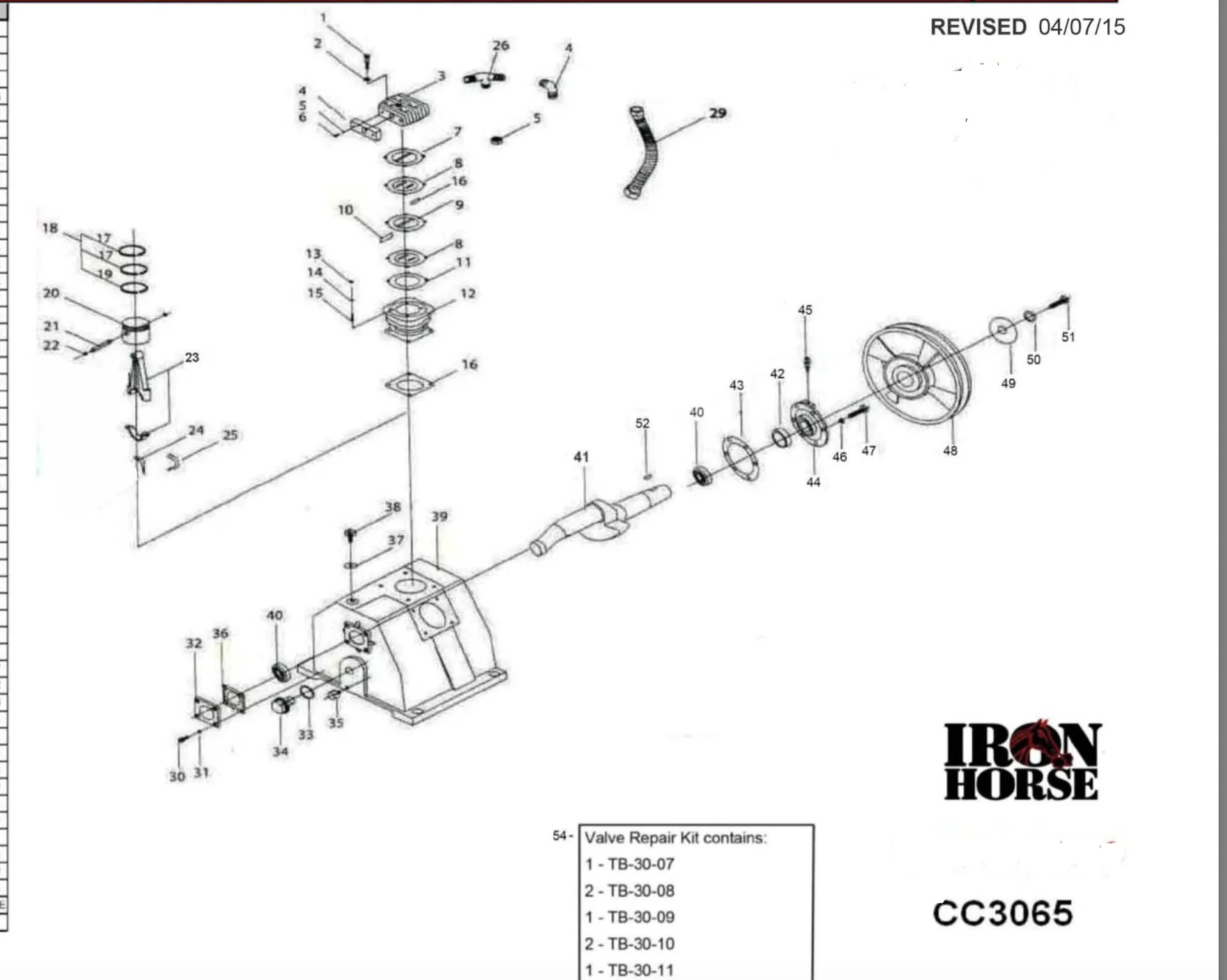

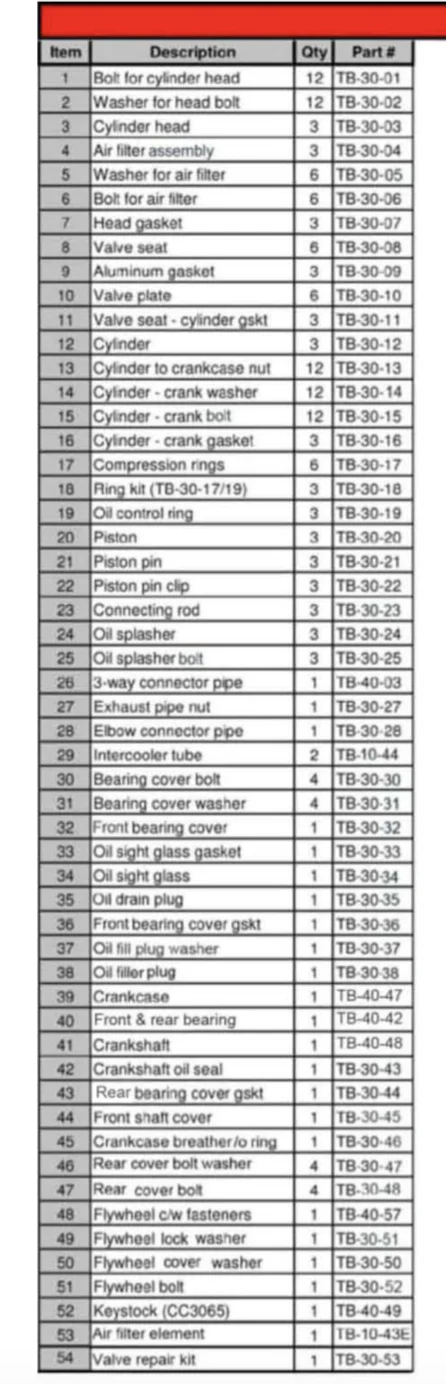

Item	Description	Quantity	Part Number
1	Bolt for Cylinder Head	12	TB-30-01
2	Washer for Head Bolt	12	TB-30-02
3	Cylinder Head	3	TB-30-03
4	Air Filter	3	TB-30-04
5	Washer for Air Filter	6	TB-30-05
6	Bolt for Air Filter	6	TB-30-06
7	Head Gasket	3	TB-30-07
8	Valve Seat	6	TB-30-08
9	Aluminum Gasket	3	TB-30-09
10	Valve Plate Reed	6	TB-30-10
11	Valve Seat / Cylinder Gasket	3	TB-30-11
12	Cylinder	3	TB-30-12
13	Cylinder to Crankcase Nut	12	TB-30-13
14	Cylinder-Crank Washer	12	TB-30-14
15	Cylinder-Crank Bolt	12	TB-30-15
16	Cylinder-Crank Gasket	3	TB-30-16
17	Compression Rings	6	TB-30-17
18	Ring Kit	3	TB-30-18
19	Oil Control Ring	3	TB-30-19
20	Piston	3	TB-30-20
21	Piston Pin	3	TB-30-21
22	Piston Pin Clip	3	TB-30-22
23	Connecting Rod	3	TB-30-23
24	Oil Splasher	3	TB-30-24
25	Oil Splasher Bolt	3	TB-30-25
26	3-Way Connector Pipe	1	TB-40-03
27	Exhaust Pipe Nut	1	TB-30-27
28	Elbow Connector Pipe	1	TB-30-28
29	Intercooler Tube	2	TB-10-44
30	Bearing Cover Bolt	4	TB-30-30
31	Bearing Cover Bolt Washer	4	TB-30-31
32	Front Bearing Cover	1	TB-30-32
33	Oil Sight Glass Gasket	1	TB-30-33
34	Oil Sight Glass	1	TB-30-34
35	Oil Drain Plug	1	TB-30-35
36	Front Bearing Cover Gasket	1	TB-30-36
37	Oil Fill Plug Washer	1	TB-30-37
38	Oil Fill Plug	1	TB-30-38
39	Crankcase	1	TB-40-47
40	Front & Rear Bearing	1	TB-40-42
41	Crankshaft	1	TB-40-48
42	Crankshaft Oil Seal	1	TB-30-43
43	Rear Bearing Cover Gasket	1	TB-30-44
44	Front Shaft Cover	1	TB-30-45
45	Crankcase Breather/ O Ring	1	TB-30-46
46	Rear Cover Bolt Washer	4	TB-30-47
47	Rear Cover Bolt	4	TB-30-48
48	Flywheel C/W Fasteners	1	TB-40-57
49	Flywheel Lock Washer	1	TB-30-51
50	Flywheel Cover Washer	1	TB-30-50
51	Flywheel Bolt	1	TB-30-52
52	Keystock	1	TB-40-49
53	Air Filter Element	1	TB-10-43E
A	Valve Repair Kit	1	TB-30-53
