$1,595.00

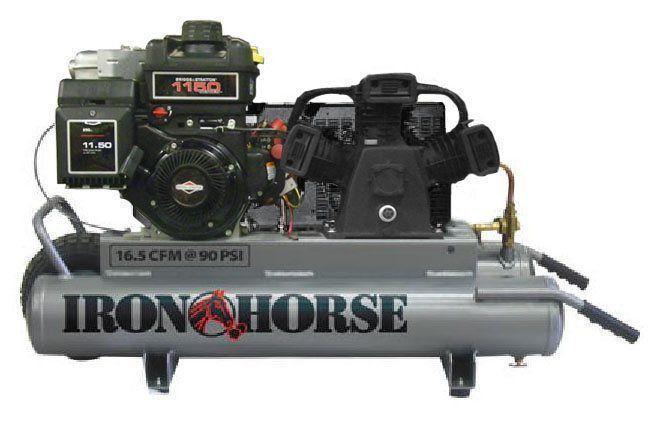

Iron Horse 8 Horse Power 10 Gallon Air Comrpessor With Electric Start Briggs And Stratton Engine—
$1,595.00
The Story
This item is required to ship truckline.  Residental fees and lift gates fees will have to be added in addition to the shipping charges.
- Rugged 2 Cylinder Cast Iron Compressor
- Individual And Removalbe Cylinders For Smoother And cooler Operation And Cooler Operation
- 8 Horse Power Briggs And Stratton Engine OHV Smooth, Quiet, Operation And Maximum Reliability
- Electric Start 10 Gallon Capacity Twin Tanks The Largest In The Industry
- Pneumatic Tire For Easy Handling And Maneuverability
- Easy View Oil Sight Gauge
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal from Fly Wheel For Cooler Running And Longer Life
- Sturdy Belt Gaurd
- Engine Idle Control Features Reduces Operating Costs And Unnecessary Wear
- 16.5 CFM @ 90PSI
- Rated PS 150
- Length 46" x Width 17" x Height 27"
- Weight 189 LBS
- TMI135000
- Shipping Dimensions: 270# 40x48x35

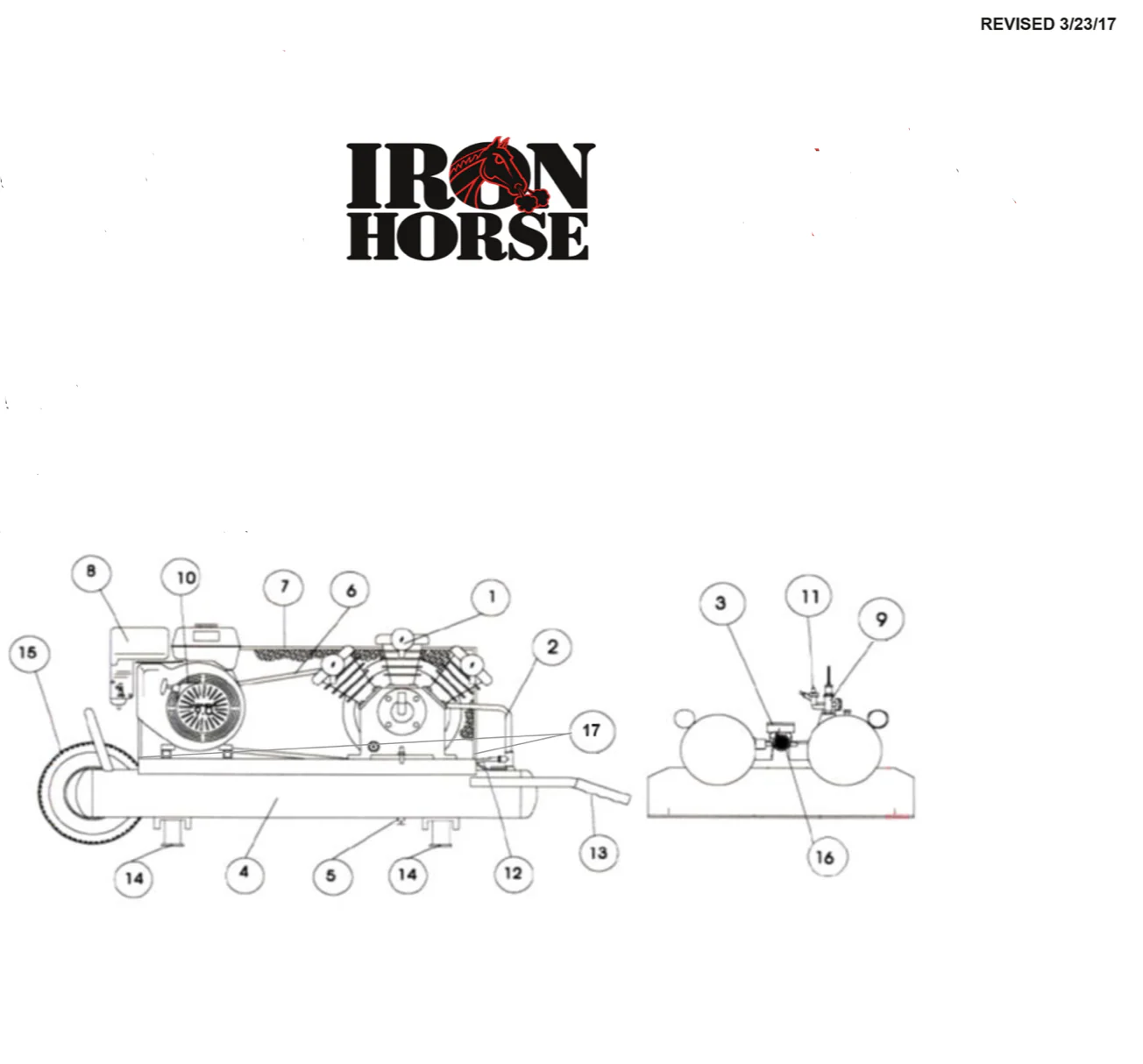

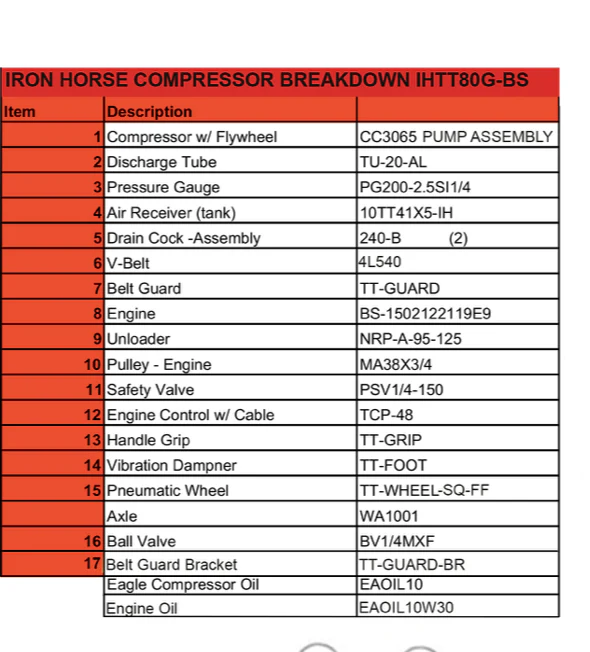

| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC3065 |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Pressure Gauge | PG200-2.5SI1/4 |
| 4 | Air Receiver (tank) | 10TT41X5-IH |
| 5 | Drain Cock -Assembly | 240-BÂ Â Â Â Â Â Â Â Â (2) |
| 6 | V-Belt | 4L540 |
| 7 | Belt Guard | TT-GUARD |
| 8 | Engine | BS-8HPE |
| 9 | Unloader | NRP-A-95-125 |
| 10 | Pulley - Engine | MA38X1 |
| 11 | Safety Valve | PSV1/4-150 |
| 12 | Engine Control w/ Cable | TCP-48 |
| 13 | Handle Grip | TT-GRIP |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Pneumatic Wheel | TT-WHEEL-SQ-FF |
| Â | Axle | WA1001 |
| 16 | Ball Valve | BV1/4MXF |
| Eagle Compressor Oil | EAOIL10 |

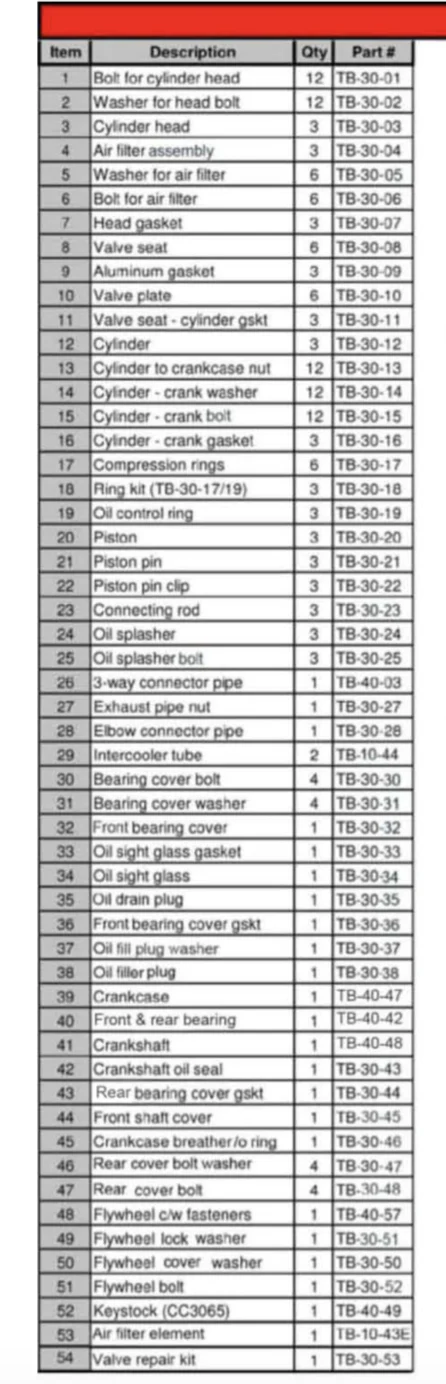

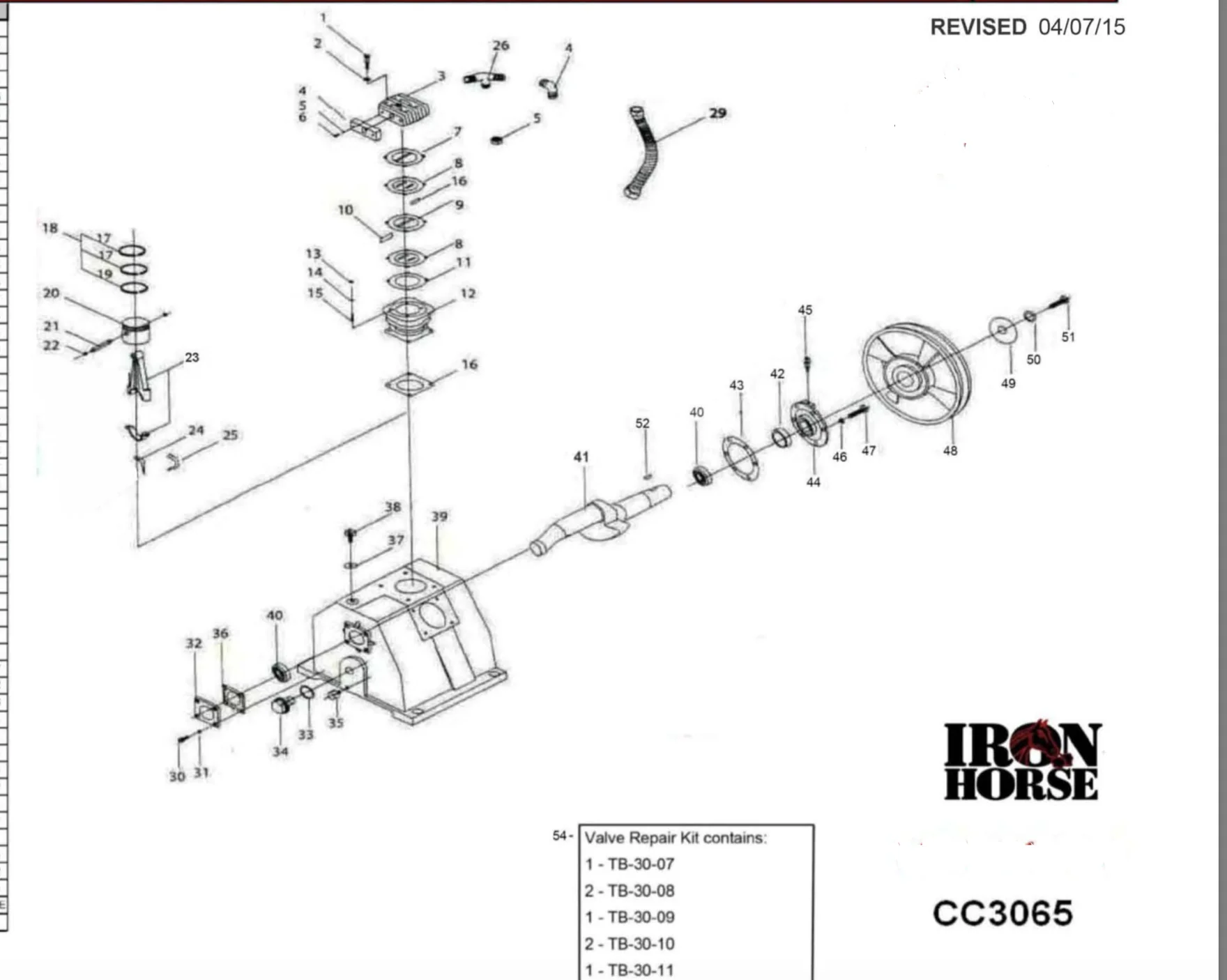

| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 12 |
TB-30-01 |
| 2 | Washer for Head Bolt | 12 | TB-30-02 |
| 3 | Cylinder Head | 3 | TB-30-03 |
| 4 | Air Filter | 3 | TB-30-04 |
| 5 | Washer for Air Filter | 6 | TB-30-05 |
| 6 | Bolt for Air Filter | 6 | TB-30-06 |
| 7 | Head Gasket | 3 | TB-30-07 |
| 8 | Valve Seat | 6 | TB-30-08 |
| 9 | Aluminum Gasket | 3 | TB-30-09 |
| 10 | Valve Plate Reed | 6 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 3 | TB-30-11 |
| 12 | Cylinder | 3 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 12 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 12 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 12 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 3 | TB-30-16 |
| 17 | Compression Rings | 6 | TB-30-17 |
| 18 | Ring Kit | 3 | TB-30-18 |
| 19 | Oil Control Ring | 3 | TB-30-19 |
| 20 | Piston | 3 | TB-30-20 |
| 21 | Piston Pin | 3 | TB-30-21 |
| 22 | Piston Pin Clip | 3 | TB-30-22 |
| 23 | Connecting Rod | 3 | TB-30-23 |
| 24 | Oil Splasher | 3 | TB-30-24 |
| 25 | Oil Splasher Bolt | 3 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 1 | TB-40-03 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 2 | TB-10-44 |
| 30 | Bearing Cover Bolt | 4 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 1 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-40-47 |
| 40 | Front & Rear Bearing | 1 | TB-40-42 |
| 41 | Crankshaft | 1 | TB-40-48 |
| 42 | Crankshaft Oil Seal |
1 | TB-30-43 |
| 43 | Rear Bearing Cover Gasket |
1 |
TB-30-44 |
| 44 | Front Shaft Cover |
1 |
TB-30-45 |
| 45 | Crankcase Breather/ O Ring |
1 |
TB-30-46 |
| 46 | Rear Cover Bolt Washer |
4 |
TB-30-47 |
| 47 | Rear Cover Bolt | 4 |
TB-30-48 |
| 48 | Flywheel C/W Fasteners |
1 | TB-40-57 |
| 49 | Flywheel Lock Washer | 1 |
TB-30-51 |
| 50 | Flywheel Cover Washer | 1 |
TB-30-50 |
| 51 | Flywheel Bolt | 1 |
TB-30-52 |
| 52 | Keystock |
1 |
TB-40-49 |
| 53 | Air Filter Element | 1 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
