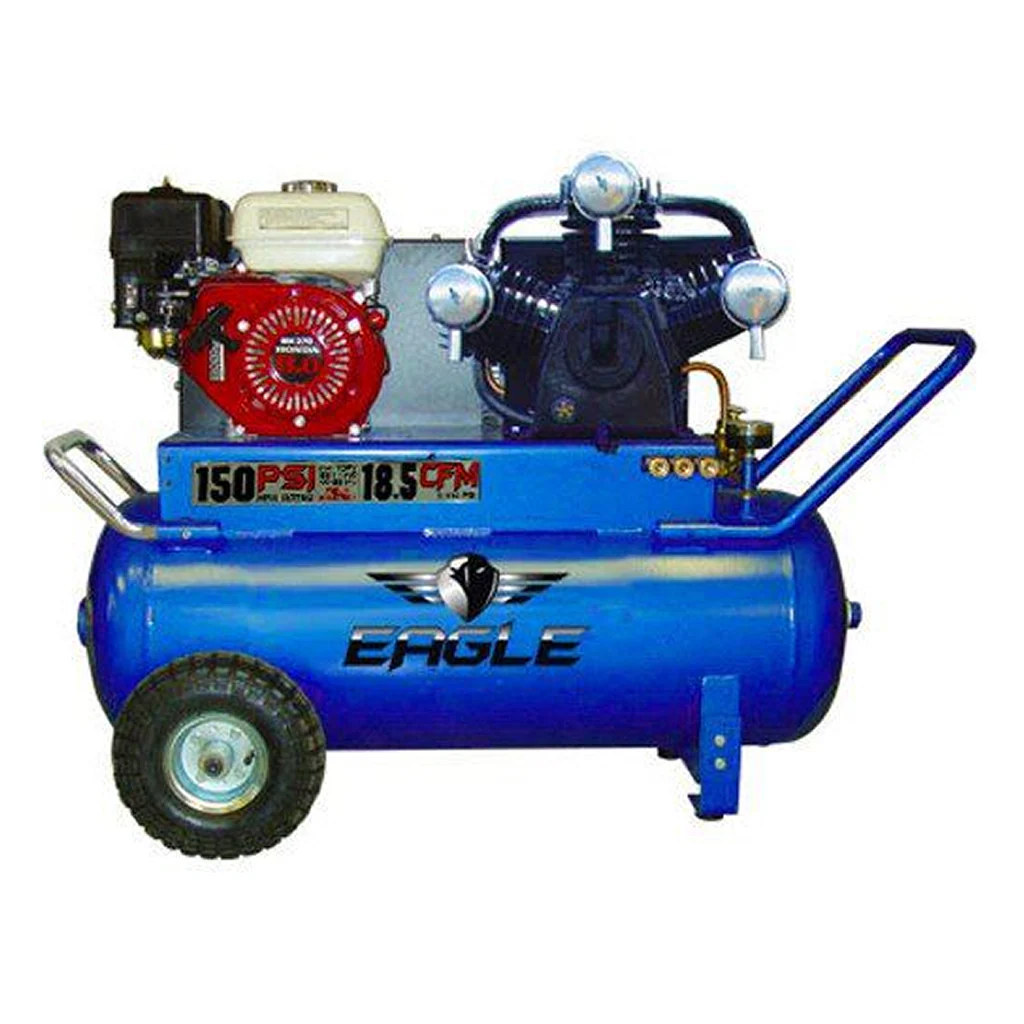

Eagle 9 Horsepower 25 Gallon Portable Air Compressor

LIFT GATE FEES AND RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

THIS ITEM SHIPS TRUCKLINE

Features:

• Rugged compressor with cast iron cylinders
• "V" design minimizes vibration, improves cooling and extends compressor life
• Individual and removable cylinders for smoother and cooler operation
• 9 HP Honda GX270-OA engine - for smooth, quiet operation and maximum reliability
• Metal air filters with "auto drop" feature
• Convenient oil drain on front of unit
• 25 gallon ASME registered tank, 150 PSIG rating
• Steel rim pneumatic tires for easy handling and maneuverability
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance
• Efficient heat removal from pulley-fan for cooler running and longer life
• Sturdy metal belt guard
• Outlet control regulator with quick connectors
• 18.5 CFM @ 100 PSI
• Max Rated PSI 150
• TMI185000
• 44" x 18" x 37"
• 250 LBS

Item	Description	Product Code	Price
1	Compressor w/ Flywheel	PT03A	$410.00
2	Discharge Tube	TU-20-AL	$22.00
3	Engine	GX-270UT1QA2-R	$
4	Pulley - Engine	MA38X1	$
5	V-Belt	A54	$15.00
6	Belt Guard	TT-GUARD	$
7	Air Receiver (tank)	25HEPORT-B	$
8	Pressure Gauge	PG200-2.5R	$
9	Drain Cock	240-B	$12.00
10	Safety Valve	PSV1/4-170	$10.00
11	Unloader	LMV100F	$90.75
12	Handle (Long)	PT-HANDLE-25L	$
	Handle (Short)	PT-HANDLE-24HS	$14.00
13	Wheel	PT-WHEEL	$35.00
14	Vibration Dampner	TT-FOOT	$2.50
15	Engine Control w/ Cable	TCLP-36-3104	$40.87
16	Regulator	R202-1/4	$32.00
17	Pressure Gauge (Regulator)	PT0160	$22.80
18	Coupler	CPL-TRI	$32.96
	Hose Assembly	TT-HOSE	$15.40
	Eagle Compressor Oil	EAOIL10	$4.50

Item	Description	Part Number	Quantity
1	Intake Filter Assembly	51111-5600	3
2	Cylinder Head	52122-0101	3
3	Lift Limiter - Discharge Valve Reed	51121-3102	6
4	Valve Plate	52122-2101	3
5	Valve Plate to Head Gasket	52122-2105	3
6	Discharge Valve Reed	51121-2103	6
7	Intake Valve Reed	52122-2103	3
8	Valve Plate to Cylinder Gasket	52122-2104	3
9	Piston	51122-5101	3
10	Piston Pin	51122-5112	3
11	Piston Pin Snap Ring	51122-5107
12	Connecting Rod c/w Dipper	51122-5120	3
13	Connecting Rod without Dipper	52122-5120
14	Cylinder	52122-4101	3
15	Oil Filter Cap	51111-4719	1
16	Cylinder to Crankcase Gasket	51122-4103	3
17	Oil Sight Glass c/w Gasket	51111-4770	1
18	Crankcase	51132-4701	1
19	Crankshaft	51132-4601	1
20	Front Bearing	83501-6205	1
21	Rear Bearing	83501-6205	1
22	Crankcase to Rear Bearing Housing Gasket	51122-4704	1
23	Rear Bearing Housing	51122-4703	1
24	Oil Seal	51122-4708	1
25	Crankcase Breather	51111-4761	1
26	Flywheel	51132-6601	1
27	Front Bearing Housing	51122-4706	1
28	Crankcase to Front Bearing Housing Gasket	51122-4707	1
29	Connecting (Interstage) Tubing	51132-7710	2
30	Metal Triangle For Valve Plate Assembly (Not Shown)	51121-3101	2
	1/4" Street Elbow (Oil Drain)	STREL1/4	1
	Interstage "Y" Fitting	51121-7702	2
	Interstage "Elbow" Fitting	51112-7701	1
	Eagle Oil (650ML or 22OZ)	EAOIL10	1



Item	Description	Part Number	Quantity
A	Intake Filter Element Kit Includes:	51121-5614C	1
	- 3 Intake Filter Elements
B	Valve Repair Kit Includes:	101000-165	3
	Valve Seat to Head Gasket (Item 5)
	2x Outlet Valve Plates (Item 6)
	Intake Valve Plate (Item 7)
	6x Valve Plate Screws
	Valve Seat to Cylinder Gasket (Item 8)
	Metal Triangle for Valve Plate Assy (Item 30)
C	Ring Repair Kit Includes:	101000-265	2
	Valve Seat to Head Gasket (Item 5)
	Valve Seat to Cylinder Gasket (Item 8)
	2x Compression Rings
	1x Oil Control Ring
	Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not Shown)	51121-2100	3
E	Flywheel Fastener Kit	51132-6602	1
E	Head Unloader Kit Includes:
	Unloader	52122-0120	3
	Unloading Elbow	69926-050101	1
	Unloading Tee	69927-050101	1
	Unloading Tube	TU-1/4-CU	5ft
	Cylinder Head	51121-0101U	3
