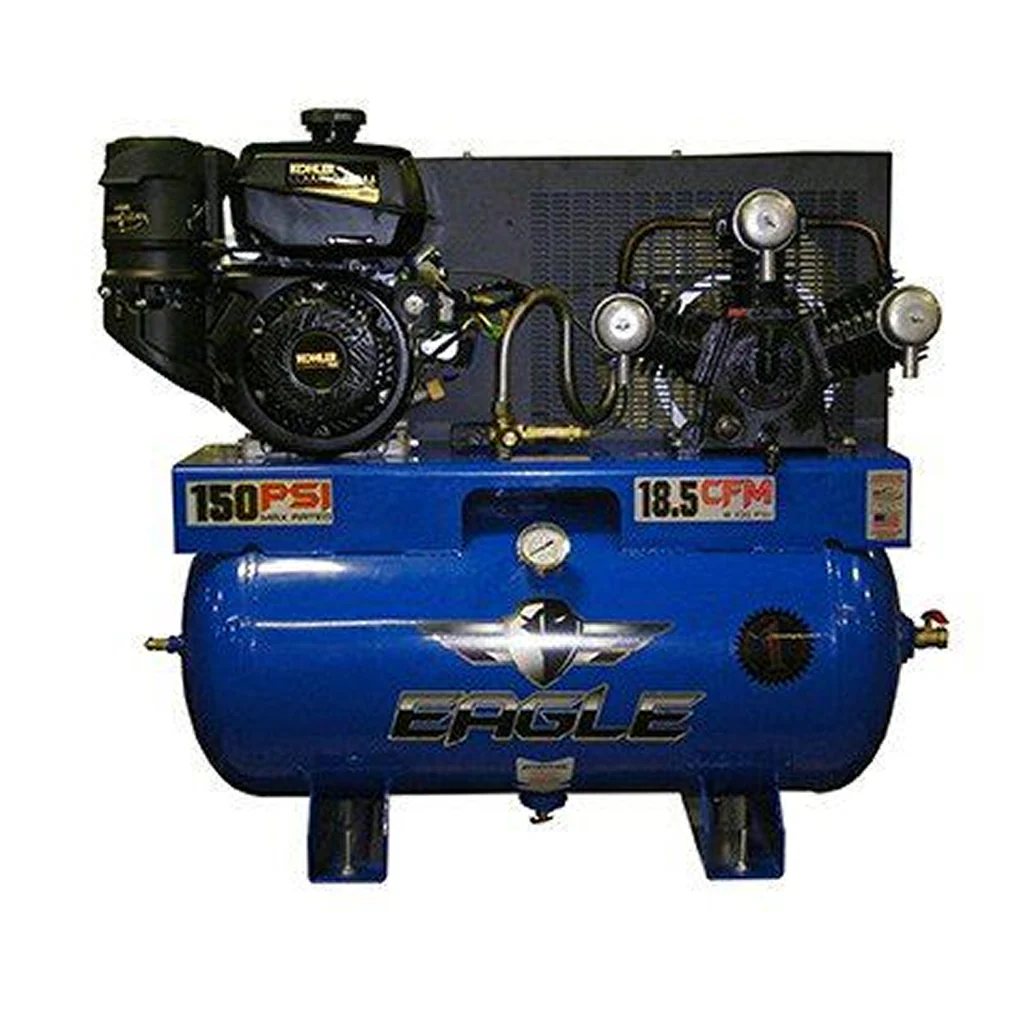

Eagle 9 5 Horsepower 30 Gallon Air Compressor



LIFT GATE FEES AND RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

This item ships truckline!

Features:

• Rugged compressor with cast iron cylinders
• "V" design minimizes vibration, improves cooling, and extends compressor life
• Individual removable cylinders for smoother, cooler operation & easy maintenance
• Engine idle control feature that reduces cost & excessive wear
• 9.0 HP manual/electric start engine
• Metal air filters with "auto drop" feature
• Convenient oil drain on front of unit
• 30 gallon ASME registered tank, 150 PSI rating
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance
• Efficient heat removal from fly wheel for cooler running & longer life
• Sturdy metal belt guard
• Outlet valve included
• 18.5 CFM @ 100 PSI
• 200 Max Rated PSI
• TMI230000
• 42" x 19" x 39"
• 297 LBS

Item	Description	Product Code	Price
1	Compressor w/ Flywheel	PT03A	$410.00
2	Discharge Tube (2.5ft) ASSY	TU-20-AL	$22.00
3	Pressure Gauge	PG200-2.5R	$12.00
4	Outlet Valve	BV3/4MF	$12.00
5	Air Receiver (tank)	30H16X38TRK-B	$
6	Drain Cock -Assembly	240-B	$12.00
7	V-Belt	A66	$
8	Belt Guard	BG30GAL	$90.00
9	Engine	GX-270UTQAE2-R	$
10	Unloader	LMV100F	$90.75
11	Pulley - Engine	MA38X1	$
12	Safety Valve	PSV1/4-170	$10.00
13	Engine Control w/ Cable	TCLP-36-3104	$40.87
	Eagle Compressor Oil	EAOIL10	$4.50



Item	Description	Part Number	Quantity
1	Intake Filter Assembly	51111-5600	3
2	Cylinder Head	52122-0101	3
3	Lift Limiter - Discharge Valve Reed	51121-3102	6
4	Valve Plate	52122-2101	3
5	Valve Plate to Head Gasket	52122-2105	3
6	Discharge Valve Reed	51121-2103	6
7	Intake Valve Reed	52122-2103	3
8	Valve Plate to Cylinder Gasket	52122-2104	3
9	Piston	51122-5101	3
10	Piston Pin	51122-5112	3
11	Piston Pin Snap Ring	51122-5107
12	Connecting Rod c/w Dipper	51122-5120	3
13	Connecting Rod without Dipper	52122-5120
14	Cylinder	52122-4101	3
15	Oil Filter Cap	51111-4719	1
16	Cylinder to Crankcase Gasket	51122-4103	3
17	Oil Sight Glass c/w Gasket	51111-4770	1
18	Crankcase	51132-4701	1
19	Crankshaft	51132-4601	1
20	Front Bearing	83501-6205	1
21	Rear Bearing	83501-6205	1
22	Crankcase to Rear Bearing Housing Gasket	51122-4704	1
23	Rear Bearing Housing	51122-4703	1
24	Oil Seal	51122-4708	1
25	Crankcase Breather	51111-4761	1
26	Flywheel	51132-6601	1
27	Front Bearing Housing	51122-4706	1
28	Crankcase to Front Bearing Housing Gasket	51122-4707	1
29	Connecting (Interstage) Tubing	51132-7710	2
30	Metal Triangle For Valve Plate Assembly (Not Shown)	51121-3101	2
	1/4" Street Elbow (Oil Drain)	STREL1/4	1
	Interstage "Y" Fitting	51121-7702	2
	Interstage "Elbow" Fitting	51112-7701	1
	Eagle Oil (650ML or 22OZ)	EAOIL10	1



Item	Description	Part Number	Quantity
A	Intake Filter Element Kit Includes:	51121-5614C	1
	- 3 Intake Filter Elements
B	Valve Repair Kit Includes:	101000-165	3
	Valve Seat to Head Gasket (Item 5)
	2x Outlet Valve Plates (Item 6)
	Intake Valve Plate (Item 7)
	6x Valve Plate Screws
	Valve Seat to Cylinder Gasket (Item 8)
	Metal Triangle for Valve Plate Assy (Item 30)
C	Ring Repair Kit Includes:	101000-265	2
	Valve Seat to Head Gasket (Item 5)
	Valve Seat to Cylinder Gasket (Item 8)
	2x Compression Rings
	1x Oil Control Ring
	Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not Shown)	51121-2100	3
E	Flywheel Fastener Kit	51132-6602	1
E	Head Unloader Kit Includes:
	Unloader	52122-0120	3
	Unloading Elbow	69926-050101	1
	Unloading Tee	69927-050101	1
	Unloading Tube	TU-1/4-CU	5ft
	Cylinder Head	51121-0101U	3
