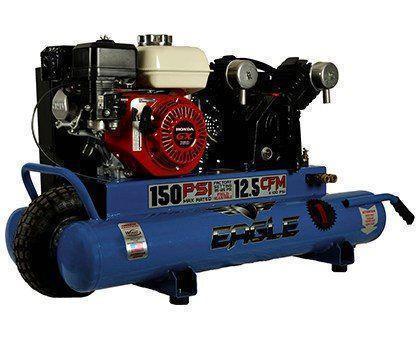

Eagle 5 5 HP 10 Gallon ES Air Compressor—
$1,799.00
The Story
THIS ITEM SHIPS TRUCKLINE
LIFT GATE FEES AND RESIDENTIAL FEES MAY APPLY IN ADDITION TO SHIPPING CHARGES
Features:
- 5.5HP
- CFM@ 100 PSI 12.5
- Maximum Rated PSI - 150
- Receiver Capacity- 10 Gal
- Honda GX160ut1zxe2-r Motor
- Dimensions- 50x18x24
- Weight- 190 lbs
- Rugged Compressor With Cast Iron Cylinders
- V Design minimizes vibration, improves cooling & extends compressor life
- Individual & removable cylinders for smoother & cooler operations
- 10 Gallon capacity twin tanks- the largest in the industry
- Steel rim pneumatic tire for easy handling and maneauverability
- Convenient oil drain on front of unit
- Easy view oil sight guage
- Metal Air Filters with "Auto Drop" feature
- High efficiency reed valves for maximum performance
- Efficient heat removal from pulley-fan for cooler running and longer life
- Sturdy metal belt guard
- Engine slow-down control- reduces operating costs and unnecessary wear
- Outlet control regulator with quick connectors
- This Product Is Delivered By Truck-line. There Could Be Liftgate and Residential Fees Added to the Shipping Cost.
- 1 Year Factory Warranty
- TMI160000
| Item | Description | Part Number | |
| 1 | Compressor w/ Flywheel | PV02A Pump Assembly | |
| 2 | Pressure Gauge | PG200-2.5SI1/4 | |
| 3 | Discharge Tube (2.5ft) ASSY | TU-23-AL | |
| 4 | Air Receiver (tank) | 10TT41X5-B | |
| 5 | Drain Cock -Assembly | 240-B | |
| 6 | V-Belt | 4L530 | |
| 7 | Belt Guard | TT-GUARD | |
| 8 | Engine | GX-160UT1QXE2-R | |
| 9 | Unloader | NRP-A-95-125 | |
| 10 | Pulley - Engine | MA38X3/4 | |
| 11 | Safety Valve | PSV1/4-170 | |
| 12 | Engine Control w/ Cable | TCP-48 | |
| 13 | Handle Grip | TT-GRIP | |
| 14 | Vibration Dampner | TT-FOOT | |
| 15 | Pneumatic Wheel | TT-WHEEL-SQ-FF | |
| 16 | Coupler | CPL-DUO | |
| 17 | Hose Assembly - Regulator | TT-HOSE-B | |
| 18 | Pressure Gauge (regulator) | PT0160 | |
| Eagle Compressor Oil | EAOIL10 | ||
| Regulator | R202-1/4 | ||
| Axle | WA1001 |
| Item | Description | Part Number |
Quantity |
| 1 | Intake Filter Assembly | 51111-5600 | 2 |
| 2 | Cylinder Head | 52122-0101 | 2 |
| 3 | Lift Limiter for Discharge Valve Plate | 51121-3102 | 2 |
| 4 | Valve Plate | 52122-2101 | 2 |
| 5 | Valve Plate to Head Gasket | 52122-2105 | 2 |
| 6 | Discharge Valve Reed | 51121-2103 | 4 |
| 7 | Intake Valve Reed |
52122-2103 | 8 |
| 8 | Valve Plate to Cylinder Gasket | 52122-2104 | 2 |
| 9 | Piston | 51122-5101 | 2 |
| 10 | Piston Pin | 51122-5112 | 2 |
| 11 | Piston Pin Snap Ring | 51121-5107 | 4 |
| 12 | Connecting Rod c/w Dipper | 51122-5120 | 2 |
| 13 | Metal Triangle for Valve Plate Assy. (Not Shown) | 51121-3101 | 2 |
| 14 | Cylinder | 52122-4101 | 2 |
| 15 | Oil Filler Cap | 51111-4719 | 1 |
| 16 | Cylinder to Crankcase Gasket | 51122-4103 | 2 |
| 17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 |
| 18 | Crankcase | 51122-4701 | 1 |
| 19 | Crankshaft | 51122-4601 | 1 |
| 20 | Front Bearing | 83501-6205 | 1 |
| 21 | Rear Bearing | 83501-6205 | 1 |
| 22 | Crankcase to Rear Bearing Housing Gasket | 51122-4704 | 1 |
| 23 | Rear Bearing Housing | 51122-4703 | 1 |
| 24 |
Oil Seal |
51122-4708 | 1 |
| 25 | Crankcase Breather | 51111-4761 | 1 |
| 26 | Flywheel | 51122-6601 | 1 |
| 27 | Front Bearing Housing |
51122-4706 | 1 |
| 28 | Crankcase to Front Bearing Housing Gasket | 51122-4707 | 1 |
| 29 | Connecting (Interstage) Tubing | 51122-7710 | 1 |
| Interstage "Y" Fitting | 51121-7702 | 1 | |
| Interstage "Elbow" Fitting | 51112-7701 | 1 | |
| Eagle Oil (350ml or 12oz) | EAOIL10 | 1 | |
| 1/4" Street Elbow (Oil Drain) |
STREL1/4 |
1 |
| Item | Description | Part Number | Quantity |
| A | Intake Filter Element Kit Includes: | 51121-5614C | 1 |
| - 2x Intake Filter Elements Per Pump | |||
| B | Valve Repair Kit Includes: | 101000-165 | 2 |
| Valve Plate to Head Gasket (Item 5) | |||
| 2x Discharge Valve Reeds (Item 6) | |||
| Intake Valve Reed (Item 7) | |||
| 6x Valve Plate Screws |
|||
| Metal Triangle for Valve Plate Assy. (Item 13) | |||
| C | Ring Repair Kit Includes: | 101000-265 | 2 |
| Valve Plate to Head Gasket (Item 5) | |||
| Valve Plate to Cylinder Gasket (Item 8) | |||
| 2x Compression Rings | |||
| 1x Oil Control Ring | |||
| Cylinder to Crankcase Gasket (Item 16) | |||
| D | Valve Plate Assembly (Not Shown) | 51121-2100 | 2 |
| E | Flywheel Fastener Kit |
51122-6602 | 1 |
| Unloader | 52122-0120 | 2 | |
| Unloading Elbow | 69926-050101 | 1 | |
| Unloading Tee | 69927-050101 | 1 | |
| Unloading Tube | TU-1/4-CU | 3ft | |
| Cylinder Head | 51121-0101U | 2 | |
| Items Not Shown: |
|||
| Woodruf Key for Engine | 3/16x3/16x11/2 | 1 | |
| Woodruf Key for Pump (PV02A) | 51122-4606 | 1 | |
| Grommet for Bullwhip | 3203 GROMMET | 1 |
