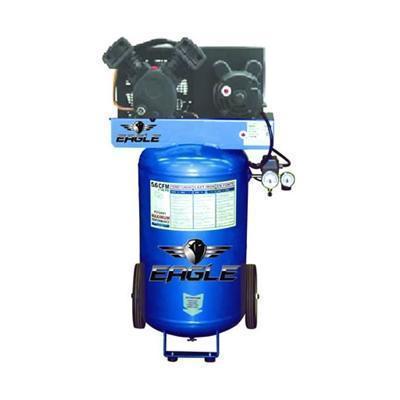

-65%Eagle 1.75 Horse Power 24 Gallon Belt Drive Cast Iron Air Compressor—
$944.00
$330.40The Story
LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED
THIS ITEM SHIPS TRUCKLINE
Features
- V-Design Minimizes Vibration, Improves Cooling, and Extends Compressor Life
- Individual and Removable Cylinders for Smoother and Cooler Operation
- Thermally Protected 1.75 HP 110V Electric Motor CSA/US Approved Comes Wired For 115V- 1 Power; Can Be Changed to 230v-1
- 24 Gallon ASME Registered Tank, 135 PSIG Rating
- Sturdy Tires for Easy Handling and Maneuverability
- Convenient Oil Drain on Front of Unit
- Efficient Heat Removal from Pulley Fan for Cooler Running & Longer Life
- Sturdy Metal Belt Guard
- Outlet Valve And Regulator Included
- Easy To view Oil Sight Glass Makes Maintenace Simple
- 1/4"Outlet Quick Connect Included
- CFM / PSI: 5.6 CFM @ 90 PSI
- Horse Power: 1.75
- Max Rated PSI: 135
- Air Tank Capacity (Gal): 24
- voltage 120/240 Volt AC
- Phase: 1
- Motor RPM: 3600
- Bare Comp. RPM: 1230
- Amp Draw: 15
- Pressure Switch: 95-125
- Cast Iron Cylinders
- Factory Set Pressure Switch
- Auto Drop Metal Air Filters
- Easy View Oil Sight Gauge
- Powder Coated Tanks
- High Efficiency Reed Valves
- Regulator & Coupler Included
- Pump Material Solid Cast Iron
- Pump Type Single Stage
- Pump Drive Belt Drive
- Oil Lubricated
- 1 Year Limited Warranty
- tmi72500
DIM: 45" x 18" x 30"
WEIGHT: 160 LBS
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC2051 |
| 2 | Discharge Tube w/ Fittings | TU-20-AL |
| 3 | Check Valve | CTF1/2X1/2 |
| 4 | Electric Motor | EM03.0-36-10SP-CH |
| 5 | Pulley - Motor | MA33X5/8 |
| 6 | V-Belt | 4L450 |
| 7 | Belt Guard | BG20GAL |
| 8 | Air Receiver | 24VPORT-B |
| 9 | Pressure Gauge (Regulator) | PT0160 |
| Pressure Gauge (Tank) | PG200-2.5R | |
| 10 | Regulator | R46-200-RNLA |
| 11 | Drain Cock | 240-B |
| 12 | Safety Valve | PSV1/4-150 |
| 13 | Pressure Switch | 21UCBDB-CH |
| 14 | Wiring Harness | 12/3-24-C4 |
| 15 | Handle | PT-HANDLE-24HL |
| 16 | Wheel | PT-WHEEL-FF |
| 17 | Vibration Damper | TT-FOOT |
| 18 | Power Cord w/ Plug | 12/3-72-PT |
| 19 | Unloader Tubing w/ Fittings | TU1/4BLK |
| *Fittings for TU1/4BLK | 68-4A | |
| Coupler | 10TT-8 | |
| Eagle Compressor Oil | EAOIL10 |
| Item | Description | Product Code | Quantity |
|
1 |
Oil Sight Gauge | TB-10-01 |
1 |
| 2 | Oil Sight Gauge Gasket | TB-10-02 | 1 |
| 3 | Oil Drain Plug | TB-10-03 | 1 |
| 4 | Crankcase | TB-10-04 | 1 |
| 5 | Oil Fill Plug & "O" Ring | TB-10-05 | 1 |
| 6 | Crankshaft | TB-10-06 | 1 |
| 7 | Front Bearing Snap Ring | TB-10-07 | 1 |
| 8 | Front Bearing | TB-10-08 | 1 |
| 9 | Rear Bearing Snap Ring | TB-10-09 | 1 |
| 10 | Rear Bearing | TB-10-10 | 1 |
| 11 | Oil Seal | TB-10-11 | 1 |
| 12 | Crank - Rear Bearing Housing | TB-10-12 | 1 |
| 13 | Rear Bearing Housing | TB-10-13 | 1 |
| 14 | Rear Bearing Housing Washer | TB-10-14 | 4 |
| 15 | Rear Bearing Housing Bolt | TB-10-15 | 4 |
| 16 | Crank Breather & "O" Ring | TB-10-16 | 1 |
| 17 | Flywheel | TB-10-17 | 1 |
| 18 | Flywheel Lockwasher | TB-10-18 | 1 |
| 19 | Flywheel Bolt | TB-10-19 | 1 |
| 20 | Flywheel Washer | TB-10-20 | 1 |
| 21 | Cylinder - Crankcase Gasket | TB-10-21 | 2 |
| 22 | Cylinder | TB-10-22 | 2 |
| 23 | Cylinder Mounting Screw | TB-10-23 | 8 |
| 24 | Cylinder Mounting Nut | TB-10-24 | 8 |
| 25 | Valve Seat - Cylinder Gasket | TB-10-25 | 2 |
| 26 | Connecting Rod | TB-10-26 | 2 |
| 27 | Piston | TB-10-27 | 2 |
| 28 | Piston Pin | TB-10-28 | 2 |
| 29 | Piston Pin Clip | TB-10-29 | 4 |
| 30 | Oil Control Ring | TB-10-30 | 2 |
| 31 | Compression Ring | TB-10-31 | 4 |
| 32 | Lower Valve Seat | TB-10-32 | 2 |
| 33 | Middle Alum. Valve Seat Gasket | TB-10-33 | 2 |
| 34 | Valve Plate Reed | TB-10-34 | 4 |
| 35 | Upper Valve Seat | TB-10-32 | 2 |
| 36 | Cylinder Head Gasket | TB-10-36 | 2 |
| 37 | Cylinder Head | TB-10-37 | 2 |
| 38 | 3-Way Interstage Connector | TB-10-38 | 1 |
| 39 | Cylinder Head Bolt Washer | TB-10-39 | 8 |
| 40 | Cylinder Head Bolt | TB-10-40 | 8 |
| 41 | Interstage Tube with Fins | TB-10-41 | 1 |
| 42 | Interstage Tube Connector Nut | TB-10-42 | 2 |
| 43 | Air Filter Assembly | TB-30-04 | 2 |
| 44 | Interstage Tube Assembly | TB-10-44 | 1 |
| 45 | Air Filter Assembly Washer | TB-10-45 | 4 |
| 46 | Air Filter Assembly Bolt | TB-10-46 | 4 |
| 47 | Ring Kit | TB-10-47 | 1 |
| 48 | Valve Repair Kit | TB-10-48 | 1 |
| 49 | Filter Element (Not Shown) | TB-10-43E | 1 |
