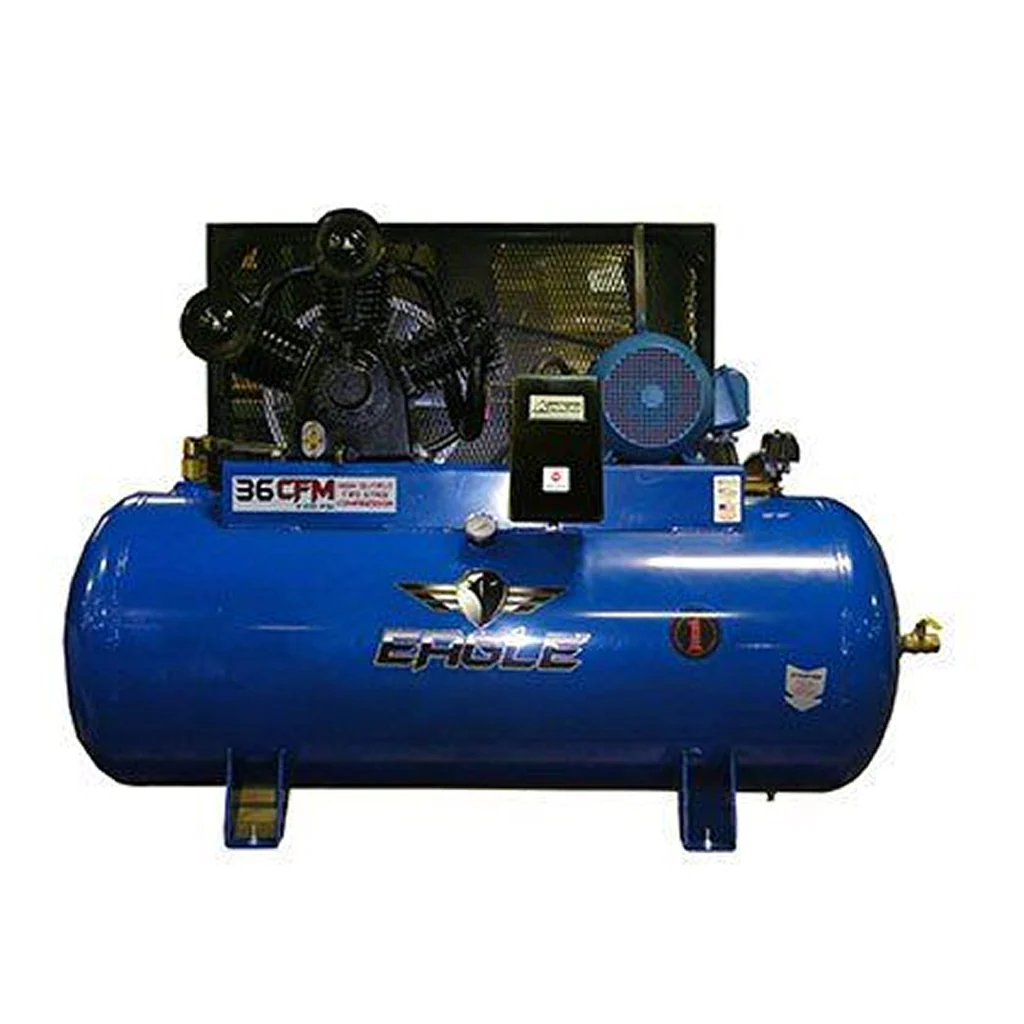

Eagle 10 Horsepower 120 Gallon Air Compressor

 THIS ITEM SHIPS TRUCKLINE

RESIDENTEL FEES AND LIFT GATE FEES MAY APPLY ON TOP OF SHIPPING FEES

Features:

• Rugged compressor with cast iron cylinders
• "V" design minimizes vibration, improves cooling and extends compressor life
• Individual and removable cylinders for smoother and cooler operation
• Heavy duty pressure switch has on/off control
• Thermally protected 10 HP three phase 208/230/460 volt or three phase 575 volt electric motors
• Metal air filters with "auto drop" feature
• Convenient oil drain on front of unit
• 120 gallon ASME registered tank, 200 PSI rating
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance
• Efficient heat removal from pulley-fan for cooler running and longer life
• Sturdy metal belt guard
• Outlet valve included
• 36 CFM @ 100 PSI
• 200 Maximum Rated PSI
• 208V Motor
• 73 x 27 x 50
• 722 LBS
• TMI350000

SHIPPING DIMENSIONS- 794# 75X36X57







Item	Description	Product Code
1	Compressor w/ Flywheel	HPT10A
2	Discharge Tube (2.5ft) ASSY	TU-1-23/45/00
	Discharge Elbow	STREL3/4"MX1"F
3	Pressure Gauge	PG200-2.5R
4	Outlet Valve	BV1MF
5	Air Receiver (tank)	120HE24X68-B
6	Drain Cock -Assembly	240-B
7	V-Belt	B89
8	Belt Guard	BG120GAL
9	Motor - 1 Phase, 208/230V	EM10.0-18-3O
	Mag Starter 7.5 HP 208/240V	1066MS
10	Check Valve	P1010S-T
11	Pressure Switch	21UCBDB-170
12	Pulley - Motor	2B9.4PD
13	Hub or Bushing	SK13/8
14	Unloader Tube	TU-1/4-CU
	**Fittings Required for TU-1/4CU	68-4A
15	Safety Valve	PSV1/4-200
	Eagle Compressor Oil	EAOIL10

		1st Stage		2nd Stage
Item	Description	Qty	Part #	Qty	Part #
1	Intake Filter Assembly	2	51124-5600	N/A	N/A
2	Cylinder Head	2	52133-0101	1	52133-0101
3	Lift Limiter - Discharge Valve Plate	8	51121-3102	2	51121-3102
4	Valve Seat	2	52133-2101	1	52133-2101
5	Valve Seat to Head Gasket	2	52133-2105	1	52133-2105
6	Discharge Valve Plate	8	51121-2103	2	51121-2103
7	Intake Valve Plate	2	52133-2103	1	52133-2103
8	Valve Seat to Cylinder Gasket	2	52133-2104	1	52133-2104
9	Piston	2	52133-5101	1	51174-5201
10	Piston Pin C/W Snap Rings	2	52133-5112	1	51174-5212
11	Piston Pin Bushing	N/A	N/A	1	52174-5208
12	Connecting Rod C/W Dipper	2	52133-5120	1	52174-5220
13	Connecting Rod Bearing (Pair)	2	51133-5109	1	51133-5109
14	Cylinder	2	52133-4101	1	52174-4201
15	Oil Filler Cap	1	51124-4719	N/A	N/A
16	Cylinder to Crankcase Gasket	2	52133-4103	1	52133-4103
17	Oil Sight Glass C/W Gasket	1	51124-4770	N/A	N/A
18	Crankcase	1	52174-4701	N/A	N/A
19	Crankshaft	1	52174-4601	N/A	N/A
20	Front Bearing	1	83501-6309	N/A	N/A
21	Rear Bearing	1	83501-6308	N/A	N/A
22	Crankcase - Rear Bearing Housing Gasket	1	52174-4704	N/A	N/A
23	Rear Bearing Housing	1	52174-4703	N/A	N/A
24	Oil Seal	1	52174-4708	N/A	N/A
25	Crankcase Breather	1	51111-4761	N/A	N/A
26	Flywheel C/W Fasteners	1	52174-6601	N/A	N/A
27	Front Bearing Housing	N/A	N/A	N/A	N/A
28	Crankcase - Front Bearing Housing Gasket	N/A	N/A	N/A	N/A
29	Connecting (Interstage) Tubing	1	52134-7710	1	52174-7720
Misc.	1/4" Street Elbow (Oil Drain)	1	STREL1/4	N/A	N/A
Misc.	Rear Bearing Cover Gasket	1	51134-4707	N/A	N/A
Misc.	Rear Bearing Cover	1	51134-4706	N/A	N/A
	Eagle Oil (2 Litres or 68oz)	1	EAOIL10	N/A	N/A
A	Intake Filter Element Kit Includes:	2	101000-310	N/A	N/A
	- 1x Intake Filter Element
B	Valve Repair Kit Includes:	2	101000-195	1	101000-195
	-Valve Seat to Head Gasket (Item 5)
	-4x Outlet Valve Plates (Item 6)
	-Intake Valve Plate (Item 7)
	-6x Valve Plate Screws
	-Valve Seat to Cylinder Gasket (Item 8)
C	Ring Repair Kit Includes:	2	101000-295	1	101000-280
	-Valve Seat to Head Gasket (Item 5)
	-Valve Seat to Cylinder Gasket (Item 8)
	-2x Compression Rings
	-Oil Control Ring		2x		1x
	-Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not shown)	2	52133-2100	1	52133-2100
